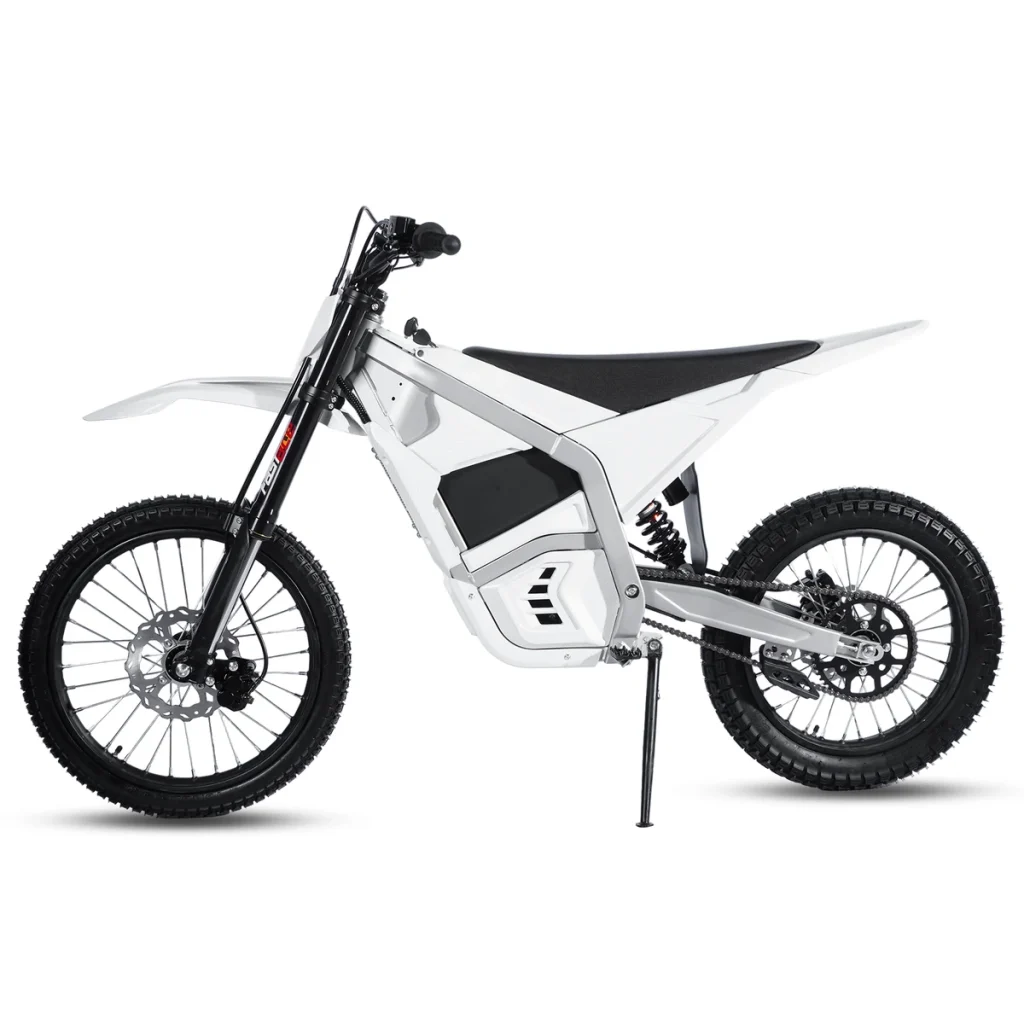

M6 MAX Adult Electric Dirt Bike — 8500W / 10kW / 13kW / 15kW, 80–100 km/h

The MAX is the geared build of the adult range: 72 V power through a gearbox rather than direct drive, on a longer frame than the M-series, with hydraulic disc brakes front and rear and a steel frame.

Four builds climb together in output, controller and pack — 8.5 kW / 100 A, 10 kW / 120 A, 13 kW / 150 A and 15 kW / 200 A — from 80–85 km/h to 100 km/h. The three lower builds share 19/17-inch wheels, an 85 cm seat, a 150 kg load rating and a 128.5 cm wheelbase; the 15 kW flagship moves to a 21-inch front wheel, a 93 cm seat, 180 kg and 134 cm.

Modular by design — drivetrain, braking, wheels, battery and branding can be specified to your market, up to full private-label customization.

Share:
15kW
Max Power
100 km/h
Top Speed
72V 40Ah
Max Battery
83–92 kg
Weight

Technical Specifications

Parameter8500W10kW13kW15kW
Battery72V / 31.5Ah lithium battery72V / 36Ah lithium battery72V / 40Ah lithium battery72V / 40Ah lithium battery
Maximum Power8500W (gearbox motor)10kW (gearbox motor)13kW (gearbox motor)15kW (gearbox motor)
Controller100A120A150A200A
Top Speed80–85 km/h90–95 km/h95–100 km/h100 km/h
Charger72V 7A72V 7A72V 7A72V 7A
FrameSteelSteelSteelSteel
TiresFront 70/100-19" / Rear 90/100-17"Front 70/100-19" / Rear 90/100-17"Front 70/100-19" / Rear 90/100-17"Front 80/100-21" / Rear 110/100-18"
Weight83 kg85 kg88 kg92 kg
Seat Height85 cm85 cm85 cm93 cm
Handle Length78 cm78 cm78 cm78 cm
Wheelbase128.5 cm128.5 cm128.5 cm134 cm
Ground Clearance28.5 cm28.5 cm28.5 cm28.5 cm
Overall194 × 80 × 115 cm194 × 80 × 115 cm203 × 80 × 119 cm203 × 80 × 119 cm
Maximum Load150 kg150 kg150 kg180 kg
Packing Size160.5 × 37.5 × 71 cm160.5 × 37.5 × 71 cm160.5 × 37.5 × 71 cm166.5 × 37.5 × 75 cm
×
