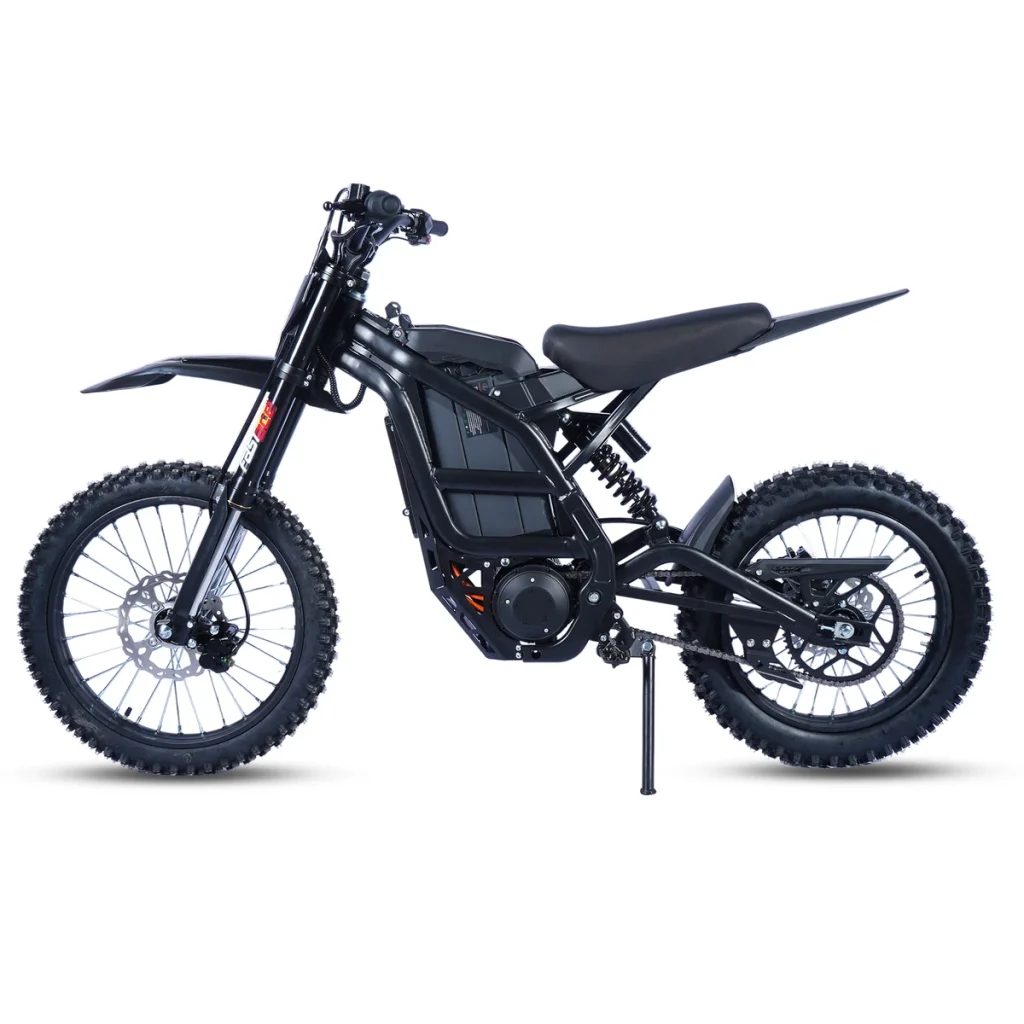

W5 Adult Electric Dirt Bike — 8500W / 11KW, 85–90 km/h
The W5 is the high-power practice bike: 72 V on 19/17-inch wheels, with hydraulic brakes front and rear and a 130 kg load rating. Two outputs — 8500 W with a 36 Ah pack and 85 km/h, or 11 kW with 40 Ah and 85–90 km/h.
Both versions run the same heavy-duty 428 chain, the same suspension and an 85 cm seat height on a 131 cm wheelbase.
Modular by design — drivetrain, braking, wheels, battery and branding can be specified to your market, up to full private-label customization.
11KW
Max Power
85–90 km/h
Top Speed
72V 40Ah
Max Battery
130 kg
Max Load
Technical Specifications
| Parameter | 8500W | 11KW |
|---|---|---|
| Motor | 72V / 8500W 138QS brushless motor | 72V / 11KW 138QS brushless motor |
| Battery | 72V / 36Ah lithium-ion battery | 72V / 40Ah lithium-ion battery |
| Suspension Type | Front hydraulic suspension / rear hydraulic shock absorber | Front hydraulic suspension / rear hydraulic shock absorber |
| Brakes | Front and rear hydraulic disc brakes | Front and rear hydraulic disc brakes |
| Tires | Front 70/100-19" / Rear 90/100-17" | Front 70/100-19" / Rear 90/100-17" |
| Top Speed | 85 km/h | 85–90 km/h |
| Charger | 72V 7A | 72V 7A |
| Handlebar Width | 78 cm | 78 cm |
| Seat Height | 85 cm | 85 cm |
| Wheelbase | 131 cm | 131 cm |
| Ride Mode | Three-speed zero start | Three-speed zero start |
| Drivetrain | Chain drive | Chain drive |
| Suitable Height | 120–185 cm (3.9–6.1 ft) | 120–185 cm (3.9–6.1 ft) |
| Maximum Load | 130 kg | 130 kg |
| Transmission | (428 chain) heavy-duty chain | (428 chain) heavy-duty chain |
| Vehicle Size | 190 × 79 × 110 cm | 190 × 79 × 110 cm |
