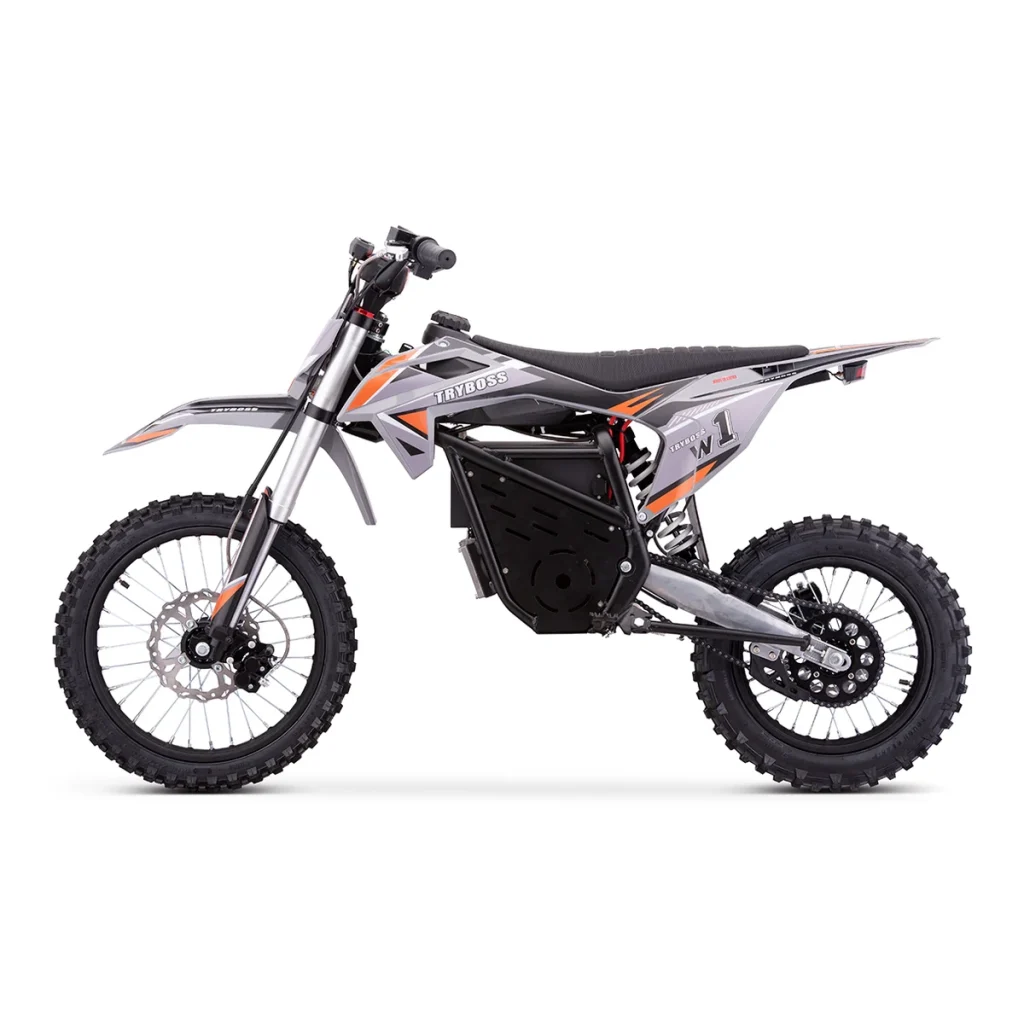

W1 Adult Electric Dirt Bike — 7000W, 17/14 / 19/16 Wheels
The W1 is the dual-sport bike of the range: 72 V and 7000 W with a removable 36 Ah pack, 85 km of range, 80 km/h and a 130 kg load rating. The pack comes out, so the bike can be charged away from where it is parked.
Two fitments cover two rider sizes on the same platform: 17/14-inch wheels with an 83 cm seat on a 74.5 kg bike, or 19/16-inch wheels with a 90 cm seat on 78.5 kg. Both run an inverted front fork with a rear airbag shock and hydraulic disc brakes front and rear.
Modular by design — drivetrain, braking, wheels, battery and branding can be specified to your market, up to full private-label customization.
7000W
Max Power
80 km/h
Top Speed
72V 36Ah
Max Battery
85 km
Max Range
Technical Specifications
| Parameter | 17/14 | 19/16 |
|---|---|---|
| Motor | 72V / 7000W DC brushless air-cooled permanent magnet motor | 72V / 7000W DC brushless air-cooled permanent magnet motor |
| Battery | 72V / 36Ah lithium battery (removable) | 72V / 36Ah lithium battery (removable) |
| Suspension Type | Front inverted hydraulic fork / rear airbag shock absorber | Front inverted hydraulic fork / rear airbag shock absorber |
| Brakes | Front and rear hydraulic disc brakes | Front and rear hydraulic disc brakes |
| Tires | Front 70/100-17" / Rear 90/100-14" | Front 70/100-19" / Rear 90/100-16" |
| Top Speed | 80 km/h | 80 km/h |
| Charger | 72V 5.0A | 72V 5.0A |
| Range per Full Charge | 85 km | 85 km |
| Ride Model | Three-speed zero start | Three-speed zero start |
| Transmission | KMC chain drive, speed adjustable | KMC chain drive, speed adjustable |
| Maximum Load | 130 kg | 130 kg |
| Seat Height | 83 cm | 90 cm |
| Wheelbase | 126 cm | 130 cm |
| Net Weight | 74.5 kg | 78.5 kg |
| Vehicle Size | 180 × 78 × 110 cm | 186 × 78 × 110 cm |
| Packing Size | 157.5 × 46.5 × 75.5 cm | 166.5 × 46.5 × 78 cm |
